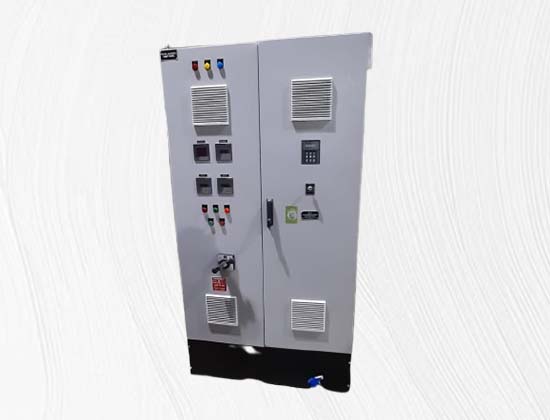

A Control Relay Panel is an electrical assembly housing multiple relays for monitoring and switching industrial systems. It isolates low‑voltage control circuits from high‑power loads, enabling safe, automated switching of motors, valves, sensors, and lighting. Panels typically feature DIN‑rail relay sockets, terminal blocks, wiring for fault protection and overload safety, and optional timer relays to sequence operations precisely.
Key Features:
-
Multifunction Protection: Offers complete protection for generators, motors, feeders, and transformers using dedicated protection relays. Includes alarm and annunciation capabilities.
-
Relay Types: Supports both electromechanical and solid‑state relays; SSRs offer fast switching, longer life, and diagnostics like overtemperature or short‑circuit detection.
-
Monitoring & Diagnostics: Real‑time or post‑event fault detection, operational diagnostics, trip logic and event logs.
-
Logical Control & Schematics: Built-in relay logic (ladder‑logic style), parameter configuration, and I/O flexibility support complex control tasks.
