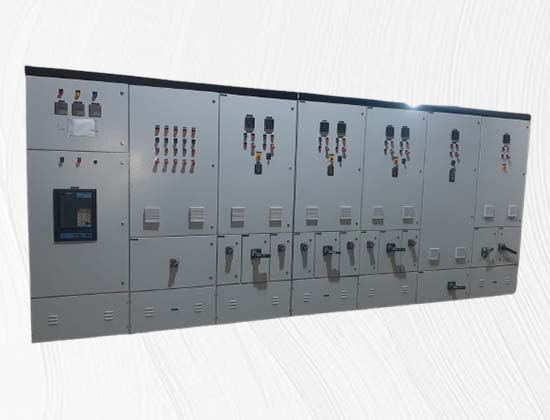

AC Drive Panel
AC Drive Panel
An AC Drive Panel integrates one or more Variable Frequency Drives (VFDs) within a robust cabinet to control the speed, torque, and direction of AC motors by adjusting voltage and frequency. It includes rectifier, DC bus components, inverter stage, protection devices, cooling units, bypass switches, harmonic filters, and communication interfaces. Designed for energy savings, soft‑start/stop motion, motor protection, and seamless integration with automation systems.
Key Features:
-
Integrated Variable Frequency Drive (VFD) to precisely control motor speed and torque via adjustable voltage and frequency
-
Built‑in protection devices: circuit breakers, surge protectors, line reactors, harmonic filters, ground fault, over/under‑voltage, thermal and short-circuit protection
-
Bypass switching capability to maintain motor operation even if VFD fails
-
Enhanced system reliability & longevity by reducing mechanical stress and maintaining smooth start/stop cycles
